Infrared motion detectors

Tectomat 360S and 360SE are designed for the lighting control in the passage areas (halls, stair-case, corridors).

Infra-red movement detectors for interior lighting

Sensitive to the infra-red radiation, they are available in flush or surface mounting. The detection distance is 6m diameter and 2.50m height. The detection zone is 360.

Lights are inhibited from being switched on if natural light is sufficient in the room.

They are equipped with a double lens (Flash patent) which offers an exceptional fineness in infrared detection. Micro-movements are sufficient to switch on and maintain the light on; same for the heating and ventilation.

Mounting applications

  • Mounting of Tectomat 360SE in a standard 75mm dia. wall box and fastening by two spring clips. The connection system complies with the installation standards concerning dismountable ceiling (attaches cable clamp and protection cover).
  • Mounting of Tectomat 360S with trunkings thanks to side pre-cutouts.
  • Control of lighting by 8A volt-free contact.

References

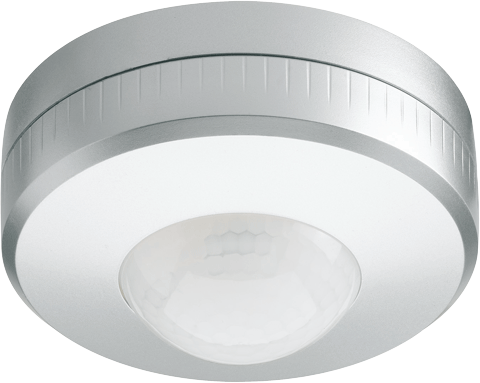

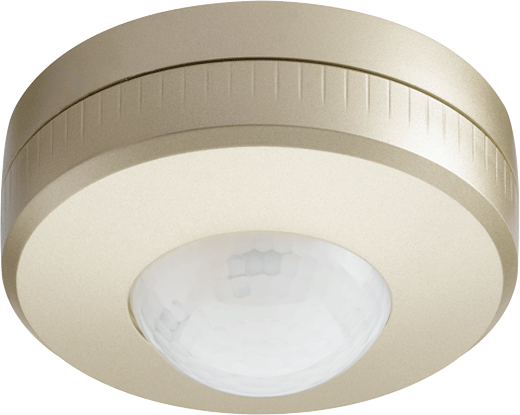

Tectomat 360 S (ref. EE804 / 52370): surface mounting

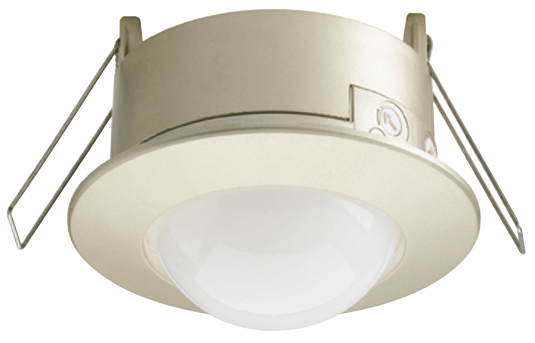

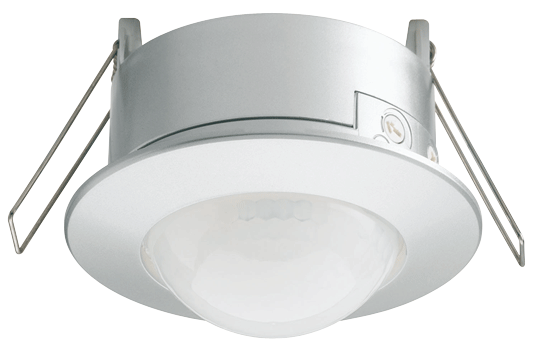

Tectomat 360 SE (ref. EE805 / 52371): flush-mounting

Available colors

52372 - silver
52374 - gold
52373 - silver
52375 - gold
