New Cosmos Flush Mounting Enclosure
A new range of aesthetically modern Cosmos flush mounting enclosures is now available in 4, 8 and 14 modules, with transparent or plain door. Specifically developed for the small enclosure application, such as in a residential apartment, hotel room and retail shop.

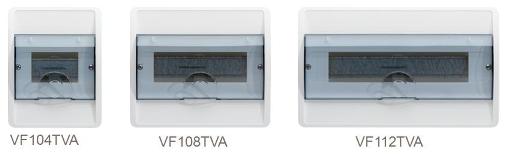

Product Range
Product Structure
- New and modern aesthetics
- Choice of transparent or plain white door
- Removable metallic DIN rail
- IP40
- Made of self extinguishing plastic material in accordance to glow wire tests specified in IEC61439-3
- Colour RAL9010 (pure white)

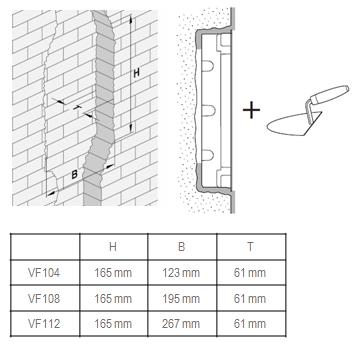

Installation
- For brick wall flush mounting
- Integrated stopper at the metal DIN rail for modular devices to fit with device slot in the cover
- N & E terminals can be fixed top or bottom side of the wall box
- Wall box is symmetrical; can be turned around 180° for wall mounting
- Pre cuts for cable entry on all side walls of the wall box
