h3e MCCBs

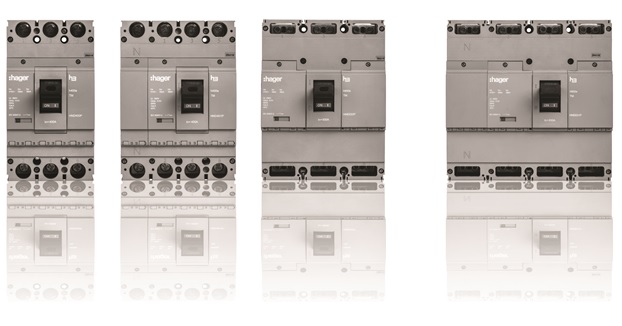

The h3e MCCB range offers reliability for incoming protective device or outgoing branch circuit protection.

Introduction

The style is integrated with the existing hager h3 MCCB range, offering a comprehensive solution for residential, commercial and industrial installation.

With configurations of 3 and 4 pole available from 300A to 800A, h3e MCCBs come with an extensive range of internal and external accessories such as auxiliary contacts, shunt trips, under voltage releases, terminal kits and rotary handles, to suit any applications.

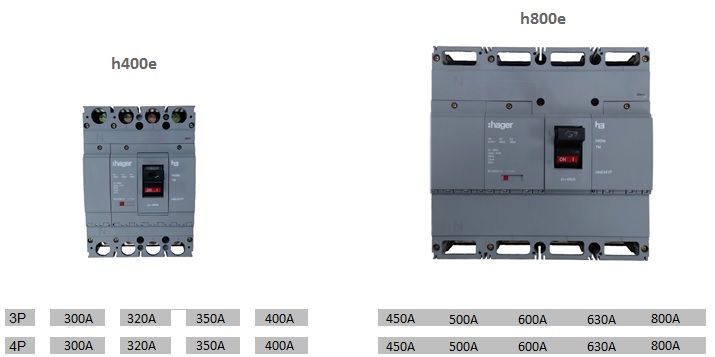

Product Range

Frame size : h400e

  • 300A to 400A


  • 3 Poles & 4 Poles
  • Ue : 415Vac


  • Ui : 690Vac
  • Breaking capacity @ 415Vac :
Icu = 50KA
Ics = 36KA

  • Protection :
Thermal fixed
Magnetic fixed set @ 10xIn +/- 20%

  • Compact dimensions :
Height: 257mm
Width: 140mm (3P) / 184mm (4P)
Depth: 155mm

Frame size : h800e

  • 450A to 800A
  • 3 Poles & 4 Poles
  • Ue : 415Vac
  • Ui : 690Vac
  • Breaking capacity @ 415Vac :
Icu = 50KA
Ics = 36KA

  • Protection :
Thermal fixed
Magnetic fixed set @ 10xIn +/- 20%

<enum>Compact dimensions :</enum,>
Height: 275mm
Width: 210mm (3P) / 280mm (4P)
Depth: 155mm

Standard accessories

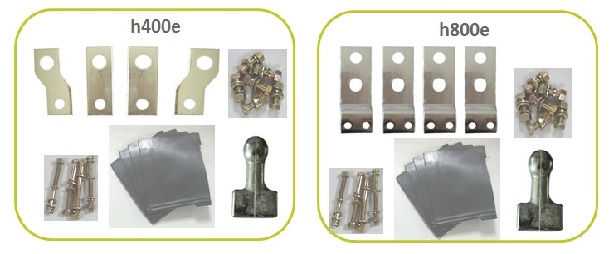

h3e MCCBs are delivered with :

  • spreaders for h400e and extended connection for h800e
  • extended handle
  • interphase barriers for top and bottom terminals

  • fixation screws

Internal accessories

  • Shunt Trip

Allows a MCCB to be tripped remotely

  • Under Voltage Release
Trip automatically when the voltage applied to the terminals is lower than threshold

  • Auxiliary Contact 2NO + 2NC
Indicate the ON or OFF status

  • Alarm Contact 1NO + 1NC
Indicate the TRIPPED status

  • Auxiliary + Alarm 1NO + 1NC / 1NO + 1NC

External Accessories

  • Motor mechanism

Available in 240Vac or 380Vac
  • Extended rotary handle
