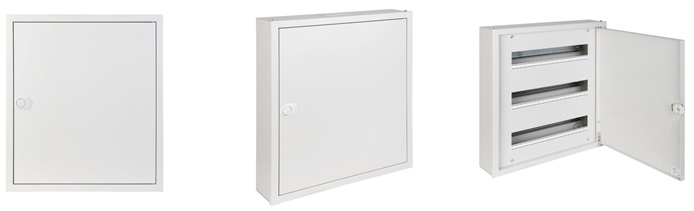

New IU Metal Din-Rail Enclosure

IU metal enclosure is used widely for a variety of indoor applications – from residential, commercial and industrial buildings for many years, due to its ease of installation and the high level of quality.

Introduction

  • Available from 13 to 108 modules, the new IU metal din-rail enclosure has been re-designed with an improved aesthetics with a new door latch.
  • IU metal enclosure is used widely for a variety of indoor applications – from residential, commercial and industrial buildings for many years, due to its ease of installation and the high level of quality. Together with the comprehensive range of Hager modular protection devices, the new IU enclosure offers user a reliable final distribution board solution in an aesthetically pleasing style.

Product Structure

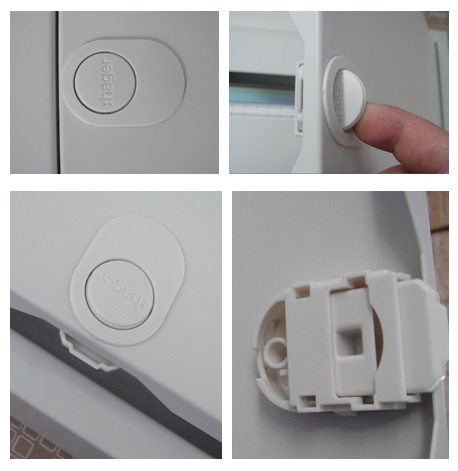

New door lock:

  • Door handle.
  • Robust door latch to lock the door.
  • Optional key lock VZ794N (same as the lock used in Golf enclosures range).

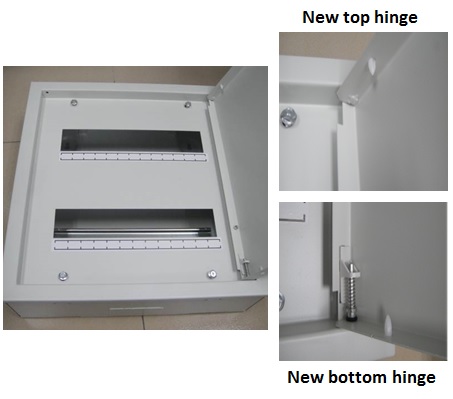

Door:

  • Removable door to make installation even easier.
  • Can be hinged on the left or right to suit space constraints.
  • Top hinge is fixed pin, bottom hinge is sliding pin.

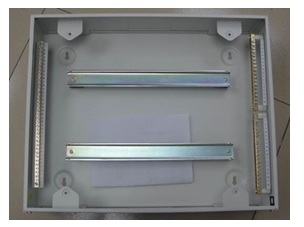

Din rail and E&N terminals:

  • Din rails are provided.

  • New Earth and Neutral terminal supports.
  • New terminals fixation method allows no screw to be visible from the exterior of the enclosure.
  • Only 2 screws on the top or bottom gland plate for fixation.
Top and bottom gland plates:

  • Knock-outs to suit trucking's and cable entries.
  • New design feature - 2 click points & 2 screws for gland plate fixation. Allows gland plate to be easily removed for more accessible space during installation.

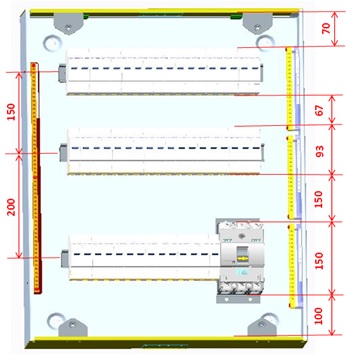

Installation with MCCB Incomer

IU enclosure for x160 3P MCCB incomer:

  • Suitable for applications with max 160A MCCB incomer.

  • Enclosure can be reversed, depending if MCCB incomer to be positioned at the top or bottom.
  • Mounting plate for MCCB is pre-installed in the factory.
  • The enclosures are the extension of 18 mod IU enclosure in 3-row, 4-row & 5-row.
