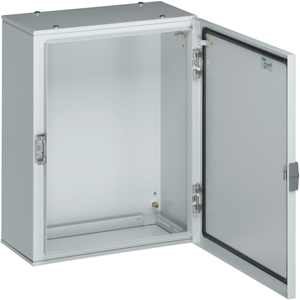

The Orion Plus IP65 enclosures was created to answer to your installation needs in specific environment (chemical aggressiveness, humidity, outdoor applications...).

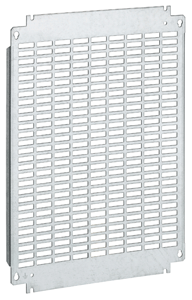

The plain or perforated mounting plates are mounted on the back of the enclosure or on slide bars.

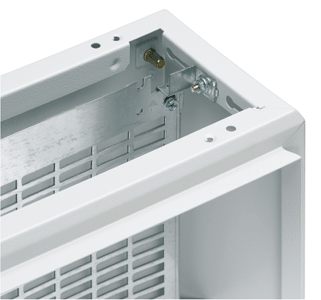

The slide bars for adjustable depth are directly integrated on the enclosure and are very accessible.

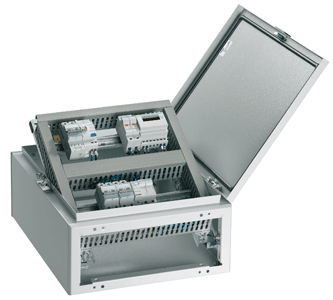

Like the plates, the mounting of the modular kits is easy and allows a quick positioning.

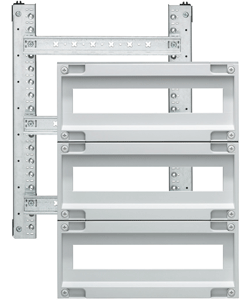

The modular equipment kit is based on a system of functional pillars and Din rails.

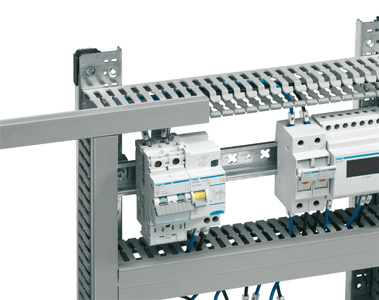

The mounting and wiring of the modular devices on the rails can be done, either outside, or inside

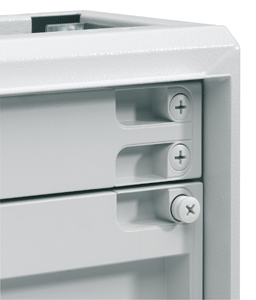

The front plates are fixed with self-retaining quarter turn screws.
Delivered in standard with the modular equipment kit, it can be replaced by plain front plates. It can be mounted on the right side or on the back to facilitate the installation of non modular devices (lamps, buttons...).
They have a square profile on the hollow face, what makes the identification of the drilling easy.
Metal enclosures can be mounted on plinth or joined vertically with help of a kit which keeps the sealing of the whole unit.
The opening at the top and on the bottom of the enclosures facilitates the wiring and the connections between
the two levels of enclosures.

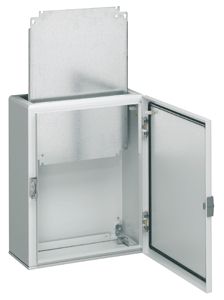

The metal enclosures are equipped with a large opening at the top and the bottom, allowing an easier passage of the mounting plates.
