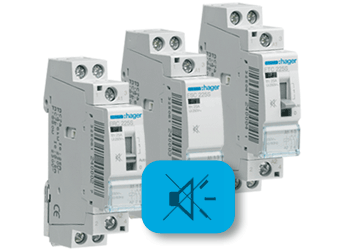

New Modular Contactors
Contactors and relays are essential power devices to control all sorts of circuits remotely. The Hager range has been significantly enhanced with 16 to 63A solutions, in standard and hum free versions.
Technological Innovation
The humfree contactors range comes with a unique innovation :
- No humming during the whole product life.
- Low switching noise.
- Essential for areas where tranquility is needed, such as residential, hotel, hospital rooms, meeting rooms, etc.
- Save on your electricity bill by benefiting from a reduced power consumption.
- 30% less power consumption than current range.
- Example : Our new 1 module contactor consumes only 1.8VA while a similar product consumes between 3 – 4.6VA.

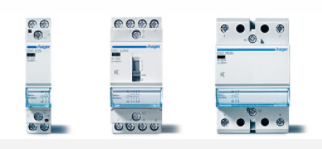

Technical Characteristics
Contacts:
- 1NO, 1NC
- 2NO, 2NC, 1NO+1NC
- 3NO, 3NC
- 4NO, 4NC, 2NO+2NC, 3NO+1NC
- 230Vac, 110Vac, 24Vac, 8/12Vac
- Eco design products
- Auxiliary contact ESC080 1NO+1NC 6A 230V AC12 with mechanical indicator.
- Sealable terminal covers.
